CNLINKO LP20 2 Pin Waterproof Connectors,IP68 Circular Connectors Fast Locking Plug,2-12 Pin Power Connector M20 Male Female Plug,LED Outdoor Lighting Connectors(2 Pin)

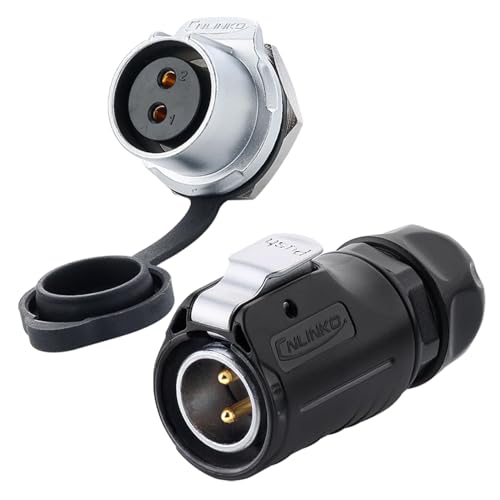

Black Single-Hole Socket Set Overview: The LP-20-C02PE-01-022(Male Plug) and LP-20-J02SX-03-101(Female Socket) are designed for plug/unplug connections with an IP68 protection rating (when mated), ensuring excellent dust and water resistance.

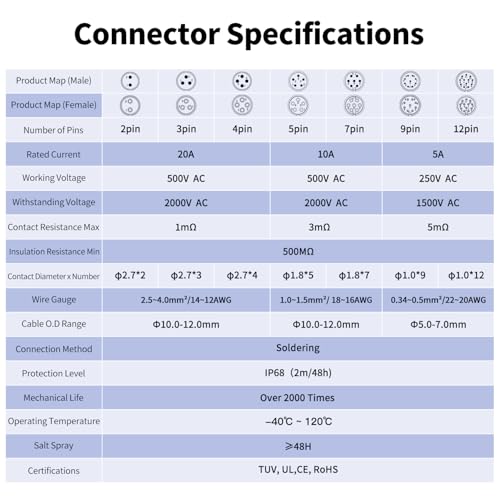

Cable Specification: Compatible with cables ranging from 2.5-4.0mm² /14-12 AWG with a cable diameter range of Φ10.0~Φ12.0mm. The contact diameter is Φ2.7×2. The connector is designed for over 2000 cycles at temperatures ranging from -40°C to 120°C. Assembly style: solder-assembly.
Electrical Specifications: Rated for 20A current, 500V AC voltage, and 2000V withstand voltage for 1 minute. Features low contact resistance (500MΩ) for consistent electrical performance. Note: Avoid powering during insertion.
