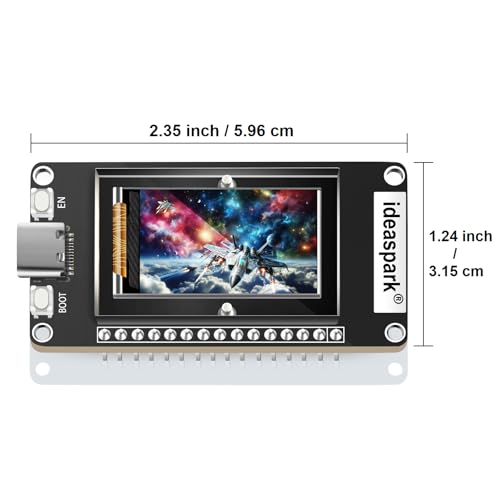

ideaspark® ESP32 Development Board Integrated 1.14 inch ST7789 135×240 TFT LCD Display,WiFi+BL Wireless Module,CH340 Driver USB Type-C for Arduino Micropython (ESP32 1.14 inch LCD(Solder PIN))

The ESP32 1.14” LCD board has all the features of the traditional ESP32 Devkit V1 module,with the same exact peripheral ports,offers seamless integration with a 1.14-inch LCD display, eliminating the need for frustrating wires and breadboards.Display features a high-resolution 135×240 full color with ST7789 driver and is compatible with I2C interfaces. Plus,It uses Type-c usb cable to connect. Say goodbye to messy setups and hello to hassle-free electronics with the ESP32 board
Board is based on ESP32-WROOM-32 module integrated with Antenna switches, RF Balun, power amplifiers, low-noise amplifiers, filters, and management modules, and the entire solution occupies the least area of PCB. 2.4 GHz Wi-Fi plus BLE dual-mode chip, TSMC Ultra-low power consumption 40nm technology, power dissipation performance and RF performance is the best, safe and reliable, easy to extend to a variety of applications

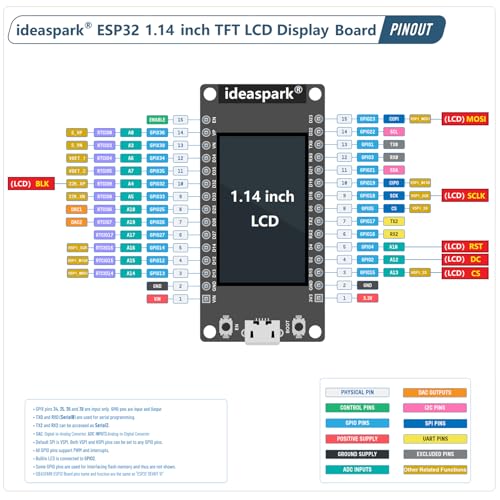

Board uses SPI to connect LCD: D23/GPIO23->MOSI, D18/GPIO18->SCLK, D15/GPIO15->CS, D2/GPIO2->DC, D4/GPIO4->RST,D32/GPIO32->BLK.With this board,it’s easy to display a variety of information and data
