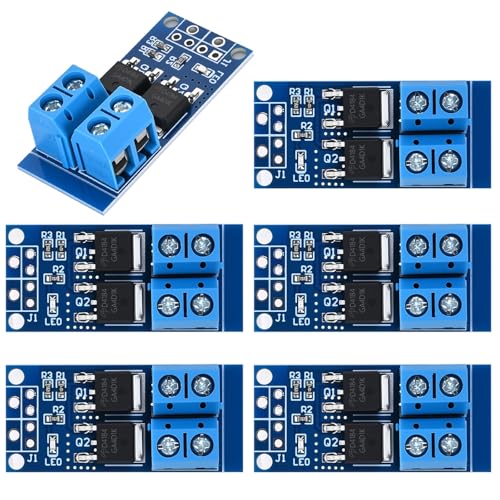

6PCS Dual High-Power MOSFET Trigger Switch Drive Module 0-20KHz PWM Adjustment Electronic Switch Control Board Motor Speed Controller Lamp Brightness Control, DC 5V-36V 400W, 15A (Max 30A)

Working voltage: DC 5V-36V, the trigger source: digital high-low (DC 3.3V – 20V), continuous current: 15A, maximum current and power: 30A, 400W, operating Temperature: -40-85℃, size: 1.34×0.67×0.47inch/34 x 17 x12mm (length x width x height)
DUAL MOS DRIVE: The MOSFET motor board Utilizes dual MOS parallel connection with active output, featuring lower internal resistance, higher current, and robust power output (15A, 400W at room temperature), meeting the requirements of most devices
WIDE VOLTAGE RANGE, PWM SUPPORT: With a working voltage range of DC 5V to 36V and compatibility with PWM signals, this PWM regulator control panel offers versatility in controlling devices. It accepts digital signals within the voltage range of DC 3.3V to 20V, making it suitable for use with micro controller IO ports, PLC interfaces, and other DC power sources
