UST1152 Pool Pump Motor 1.5 HP 56J Frame Fit for Hayward SP2610X15 AST165

【Perfect Direct Replacement】Our UST1152 pool pump motor is a 1:1 match for A.O. Smith Century UST1152, and directly replaces Hayward SP2610X15, US Motors AST165, A.O. Smith B229. Fully compatible with Hayward Super/Super II/Max-Flow, Jacuzzi Magnum, Pentair Pinnacle 1.5HP pool pumps—no extra modification needed for installation

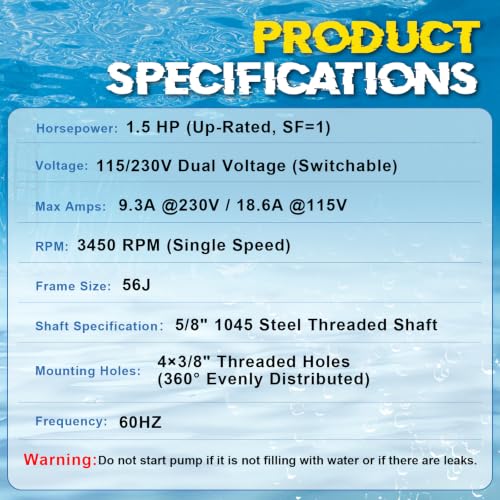

【Premium Core Parameters】This single-speed motor features 115/230V dual voltage (switchable), 9.3A@230V/18.6A@115V max amps, 3450 RPM high speed, 56J frame, SF=1 service factor and Class B insulation. Designed for continuous duty (CONT) operation, it can withstand 50°C ambient temperature, perfectly meeting daily pool circulation needs
【Durable & Corrosion-Resistant Build】Equipped with 5/8″ 1045 steel threaded shaft for strong load-bearing and wear resistance; 4×3/8″ threaded mounting holes (360° evenly distributed) for stable installation; weather-resistant casing and built-in pedestal base protect the motor from seasonal changes and inclement weather, extending service life.
